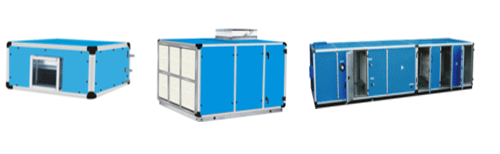

Double skin air handling unit

Applications   Features
  • Health Care Hospitals, Nursing Homes, Clinics, Health Clubs, PHARMACEUTICALS INDUSTRY & LABORATORY .

  • Horizontal chilled water ceiling suspended Air Handling units, are available in various sizes. The range of airflow is from 600 CFM to 8000 CFM. The nominal cooling capacity is from 1.5 TR to 20 TR.
  • Single/ double skin Air Handling units are fabricated with extruded aluminum profiles. The single skin panel is fabricated from 1.2 mm / 1.6 mm galvanized steel sheet and is fixed to aluminum frame work using nuts and bolts from inside. The double skin sandwich panels are fabricated using either galvanized   or stainless steel sheets. Specification of the sheet used is of 0. 6 mm /0. 8 mm. The space between the sandwiched sheets panels is filled by injecting polyurethane foam of density 40 kg./m3 having thickness of 23mm.
